Don’t disrupt the moment - enhance it with the ceiling mounted, HD quality document camera. Experience seamless video, remote management, and flexible installation with the Vaddio DocCAM 20 HDBT.

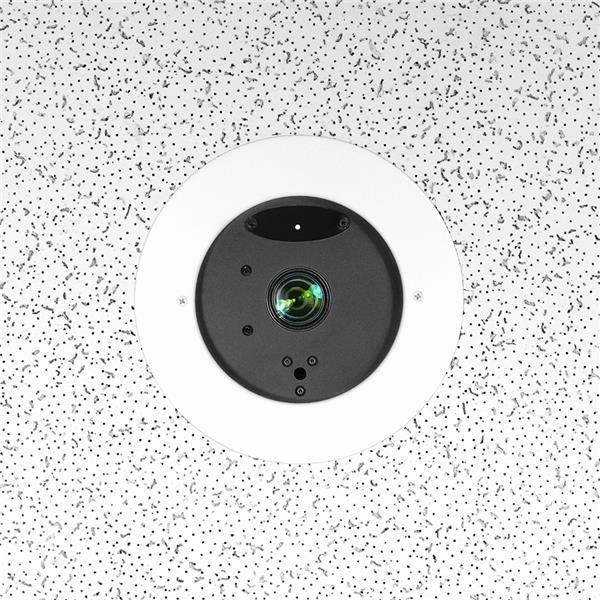

The DocCAM 20 HDBT is a high definition, recessed in-ceiling document camera.
Engage the audience like never before with 20x optical zoom and high-definition 1080p/60fps resolution. Capture more of the table with nearly 60° horizontal field of view.

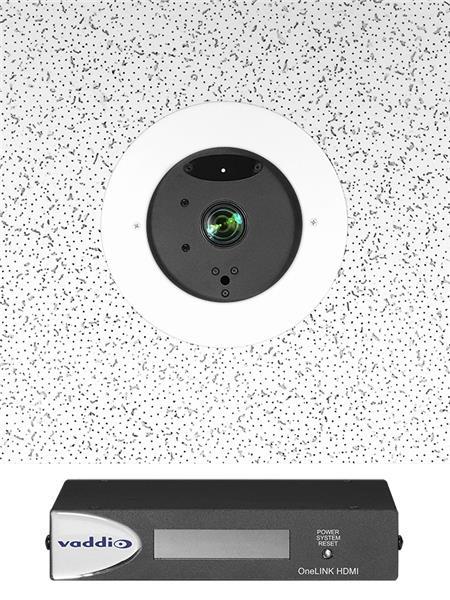

The DocCAM 20 HDBT has an in-ceiling, recessed design allowing it to blend into nearly any environment. Equipped with our popular OneLINK HDBaseT port, the DocCAM 20 HDBT easily connects to the Vaddio OneLINK HDMI extension system to reduce cabling and extend video, power, and control up to an installation distance of 328 ft (100M).
Remote network management of the DocCAM 20 HDBT allows the presenter to transmit a live image and control all the functions remotely making it an effective and efficient distance learning tool.

Key Features:
· Simple, clutter-free camera extension with HDBaseT technology
· Power, control, and video up to 328ft (100m) over a single Cat-5e/6 cable
· Simultaneous HDMI and IP Streaming outputs

In The Box:
· DocCAM 20 HDBT camera
· White trim ring with 2 qty mounting screws
· Tile Support Brace
· Vaddio IR remote commander for DocCAM 20 HDBT
· OneLINK HDMI Interface
· 48V power supply with AC cord set(s)
· EZCamera RS-232 Control Adapter
· Installation Guide



Generelt

Kamara type
Ceilingcamera, Document camera
Farve
Hvit

Billedspecifikation

Max opløsning (ud)
1920x1080
Framerate
60 FPS
Optisk zoom
20 x
Synsfelt (horisontalt)
60 °
Signal-to-noise ratio
50 dB
Min. illumination
0,4 Lux 100 Lux Recommended

Funktioner

Programmerbare presets
Ja 16
Loftinstallation/Vendbart billed
Nej Not Invertible
Auto framing/tracking
Nej

Lydspecifikation

Indbygget mikrofon
Nej
Ekstern mikrofon
Nej
Indbygget speaker
Nej
Ekstern speaker
Nej

Tilslutninger

Video ud
HDMI, IP stream (RJ-45)

Energi

Strømforsyning
1.37A, 48V DC Power supply

Dimensioner & Vægt

Bredde
203,2 mm
Dybde
203,2 mm
Højde
107,9 mm
Nettovægt
2,29 kg

Yderligere oplysninger

Inkluderet tilbehør
See product text above
Garanti
3 år

Forpakningsinfo

Forpaknings størrelse
609 x 431 x 330 mm
Forpaknings vægt
7,44 kg

Tilbehør

Artikel nummer 2380157
