WP-Series - All-in-one solution
Digital Wallpaper series is INFiLED’s flagship ultra-thin, ultra-high resolution LED display. The all-in-one design is an ideal solution for any indoor installation requiring ultra-high definition. With a panel ratio of 16:9 and a pixel pitch ranging from 0.9mm to 3.1mm, configurations of 2K, 4K, and 8K resolution displays can be easily achieved. With an ultra-thin edge thickness of just 29.5mm and an intuitive slim line mounting system, Digital Wallpaper saves space for demanding enviroments. The WP series features front service modules for efficient hassle-free maintenance, resulting in minimal screen downtime.

Built-in Mediaplayer
• The WP all-in-one solution features integrated media player to make a complete standalone screen.
• 1 HDMI output and 4 USB ports are available for easy content display.

Plug and play
• Only a domestic plug-in is required to connect the display.
• Power redundancy is possible for demanding uninterrupted 24x7 operation.

Applications:

  • Control rooms
  • Corporate
  • Broadcast
  • Hospitality

Multiple installation options
The WP all-in-one solution provides you with a new level of flexibility when it comes to using LED screens for corporate meetings, events, indoor advertising and digital signage.
Mounted on a mobile structure offers flexibility to use it
anywhere and anytime! Simply wheel your screen to a desired location and you have a perfect digital medium to communicate your message to the audience.

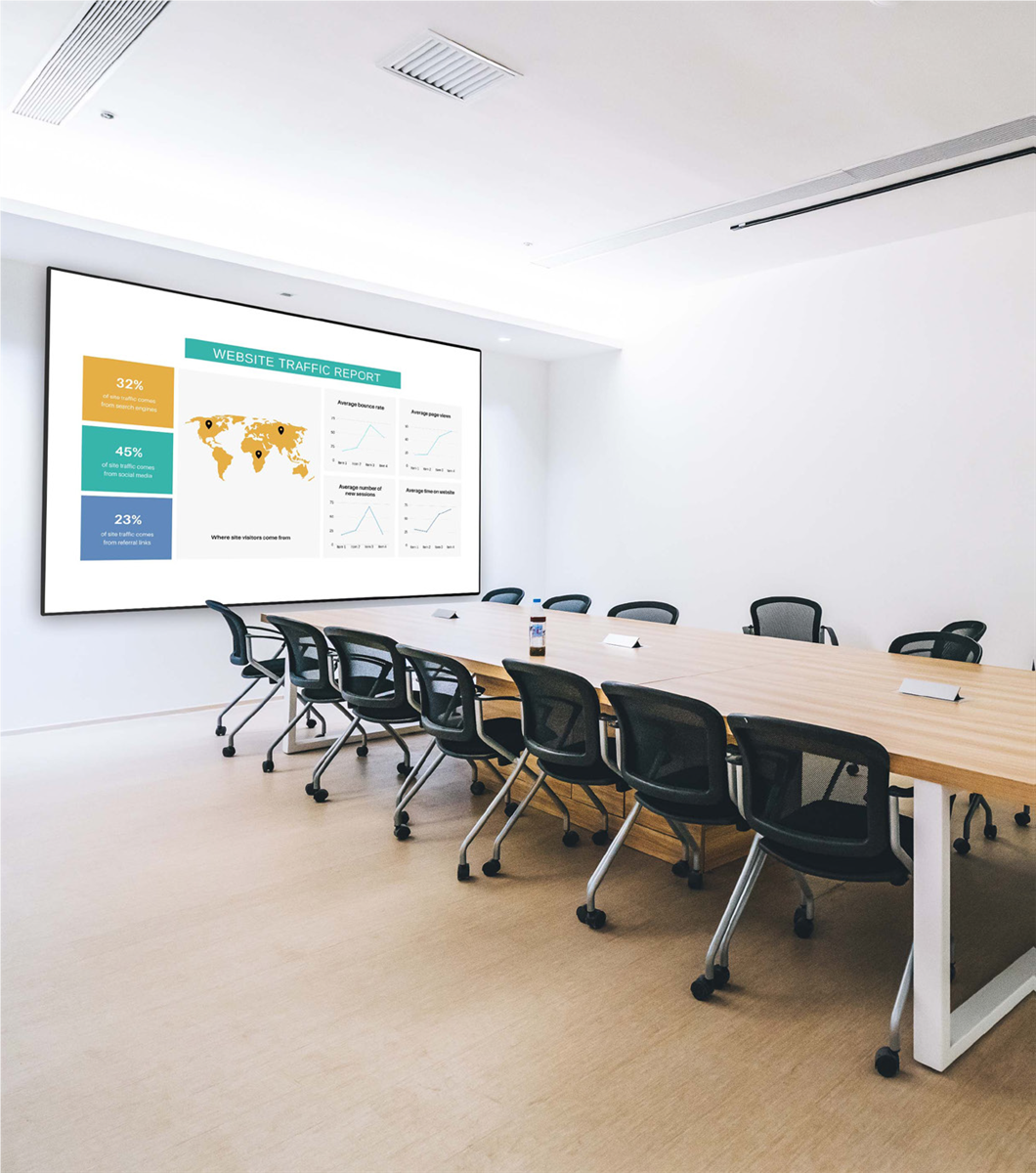

Designed to deliver superb visuals in any kind of indoor environment, including Conference rooms, Office Spaces, Hotels, Event Centres, Entertainment Venues, Hospitals, Schools & Universities and many more.



Skærm

Billed diagonal
108 " 4x4 Cabinets
Skærmopløsning
1920x1080
Pixel pitch
1,25 mm
Diode Type
IMD
Brightness (Max)
1.000 Nits

LED Modul/kabinet

No. cabinets/display (WxH)
4x4
No. modules/cabinet (WxH)
2x2
Cabinet Resolution
480x270 pixels
Modul opløsning
240x135 pixels

Tilslutninger

Display Controller
Novastar MCTRL600 included
Video ind
HDMI x1
USB connection
Mini-B x1
USB connection
USB-A x4
USB connection
USB-C x1
Ethernet
Nej
Wi-Fi
No

Energi

Strømforsyning
100-240V AC 50-60Hz
Consumption Max/m2
960 W
Consumption Max tot.
2.880 W

Dimensioner og vægt

Bredde
2.400 mm
Højde
1.350 mm
Dybde
29,5 mm
Nettovægt
83,2 kg

Yderligere oplysninger

IP Classification
IP30
Inkluderet tilbehør
16x Wall Mount Brackets, Vacuum Suction Tool, Novastar MCTRL60 Display Controller, 2% Spare parts
Garanti
3 år

Forpakningsinfo

Forpaknings størrelse
100 x 100 x 100 mm
Forpaknings vægt
1.000 g
