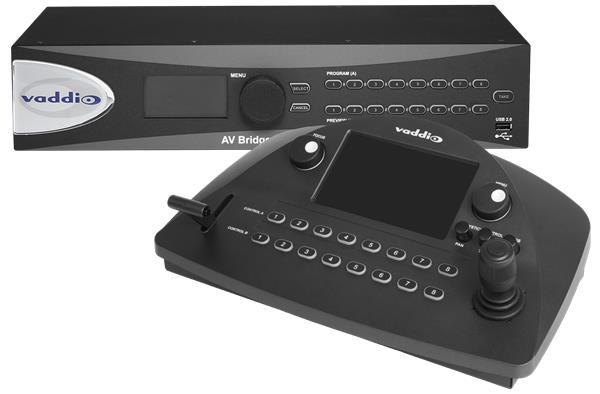

Designed specifically for live production applications. System includes AV Bridge MatrixMIX Switcher and PCC MatrixMIX Controller.
Key Features:
- 8x2 video mixer that also provides multiviewer output
- 11x7 audio mixer supports analog, HDMI, USB and IP audio channels
- Embedded RTSP IP and USB 3.0 output streaming
- Two graphic keying layers per output channel

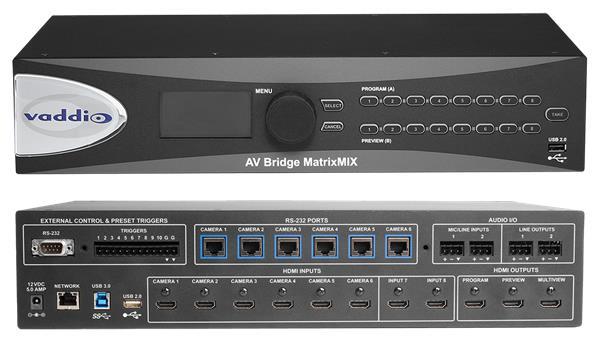

The AV Bridge MatrixMIX AV Switcher is an 8x2 video mixer that also provides multiviewer output. Its 11x7 audio mixer supports analog, HDMI, USB and IP audio channels. It offers embedded RTSP IP and USB 3.0 output streaming, plus two graphic keying layers per output channel.
The system's PCC MatrixMIX Camera Controller and TeleTouch 27 USB Touch-Screen Multiviewer, plus Vaddio cameras, audio devices or trigger sensors, you can create customized solutions for a number of specific applications:
Use as a production switcher in a live event application (live streaming switcher)
Configure as a local presentation switcher for a lecture capture application in a larger lecture hall
Configure for a PC-based collaboration session
Because the AV Bridge MatrixMIX can be controlled remotely, an operator can use it in large enterprise and higher education applications where a centralized control center is used to control multiple AV rooms
Simple to operate
Because it is easy to use, an IT staffer or volunteers at a house of worship can create a first-rate production without extensive training. With the AV Bridge MatrixMIX and the TeleTouch MultiViewer, the user simply touches the screen for live video production to choose which camera scene to use and it goes live.
Generelt
- Applikation
- Conferencing Hub, Switch
Billedspecifikation
- Max opløsning ud
- 1920x1080
- Opdateringshastighed
- 60 Hz
Connections
- Video indgange
- 8
- Video udgange
- 3
- Video ind
- HDMI x8 (6 camera, 2 presentation inputs)
- Video ud
- HDMI x3
- Video ud
- IP stream (RJ-45) RTSP IP-streaming
- Video ud
- USB-B 3.0 for connecting a PC with soft codecs for ex. conferencing
- Audio indgange
- Euroblock line x2 Balanced, for Mic/Line inputs
- Audio Udgange
- Euroblock line x2 Balanced, for Line output
Funktioner
- Scaler
- Nej
- Video operation modes
- Multiviewer, PiP - Picture in Picture
- USB passthrough
- Nej
- Kontrol
- Ethernet/IP (RJ-45), USB-B, Web interface
Energi
- Strømforsyning
- 12VDC, 5A External POS
Dimensioner og vægt
- Bredde
- 432 mm
- Dybde
- 279 mm
- Højde
- 126 mm
- Nettovægt
- 3,3 kg
Yderligere oplysninger
- Installation
- 19" Rack, 3U, Table
- Inkluderet tilbehør
- AV Bridge MatrixMIX, PCC MatrixMIX, 12V 5A POS w. AC cord set(s), Mid-span PoE+ pwr injector w. AC cord set(s), 2x rack ears, 4x 3-pos phoenix connectors, 12-pos phoenix connector, 1.83m USB 3.0 A-B cable, 3m cat-5e cable, QS Guide
- Garanti
- 3 år
Forpakningsinfo
- Forpaknings størrelse
- 355 x 330 x 330 mm
- Forpaknings vægt
- 3,63 kg
