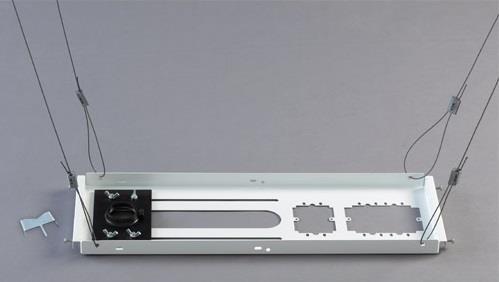

This ceiling tile kit provides a host features that make installing most lightweight front projectors faster and more secure. Chief also offers the CMS440P2 ceiling kit with built-in surge and filtering.

Key Features:

  • WireVice Cable Suspension System for quick and easy tie-off
  • TwisTile Ceiling Tile Cutter easily pierces a circular hole in the ceiling tile for extension column
  • Flexible solution provides infinite column placement within a 2' x 2' or 2' x 4' ceiling tile
  • Single and dual electrical outlet cutouts
  • All-Points Security System provides exclusive locking hardware at column connection point to protect against theft
  • Includes (4) 25' flexible cables, (4) wood eyebolts, (4) concrete anchors and a chrome trim ring
  • Fits 24" (600 mm) wide ceiling tile grids
  • 1.5" NPT compatible


Generelt

Monteringsløsning
Suspended Ceiling
Kolonne installation
NPT Threaded
Farve
Hvit
Materiale
Steel
Vinklet loft
Nej

Dimensioner og vægt

Max vægts kapacitet
22,7 kg
Bredde
203 mm
Højde
32 mm
Dybde
595 mm

Yderligere oplysninger

Garanti
10 år

Forpakningsinfo

Forpaknings størrelse
681 x 37 x 238 mm
Forpaknings vægt
3,18 kg
