The TC (TeamConnect) Bar M features 6 microphones and 4 speakers to deliver Trusted Sennheiser Audio Quality to every meeting. The TC Bar M is a true problem solver with benefits like easy setup, brand agnostic integration, easy management & control, high video quality, security and sustainability.
Features
- Plug and Play Device: Quick start via USB cable
- Integrated Beamforming Technology: Freedom of movement and seamless transition among presenters

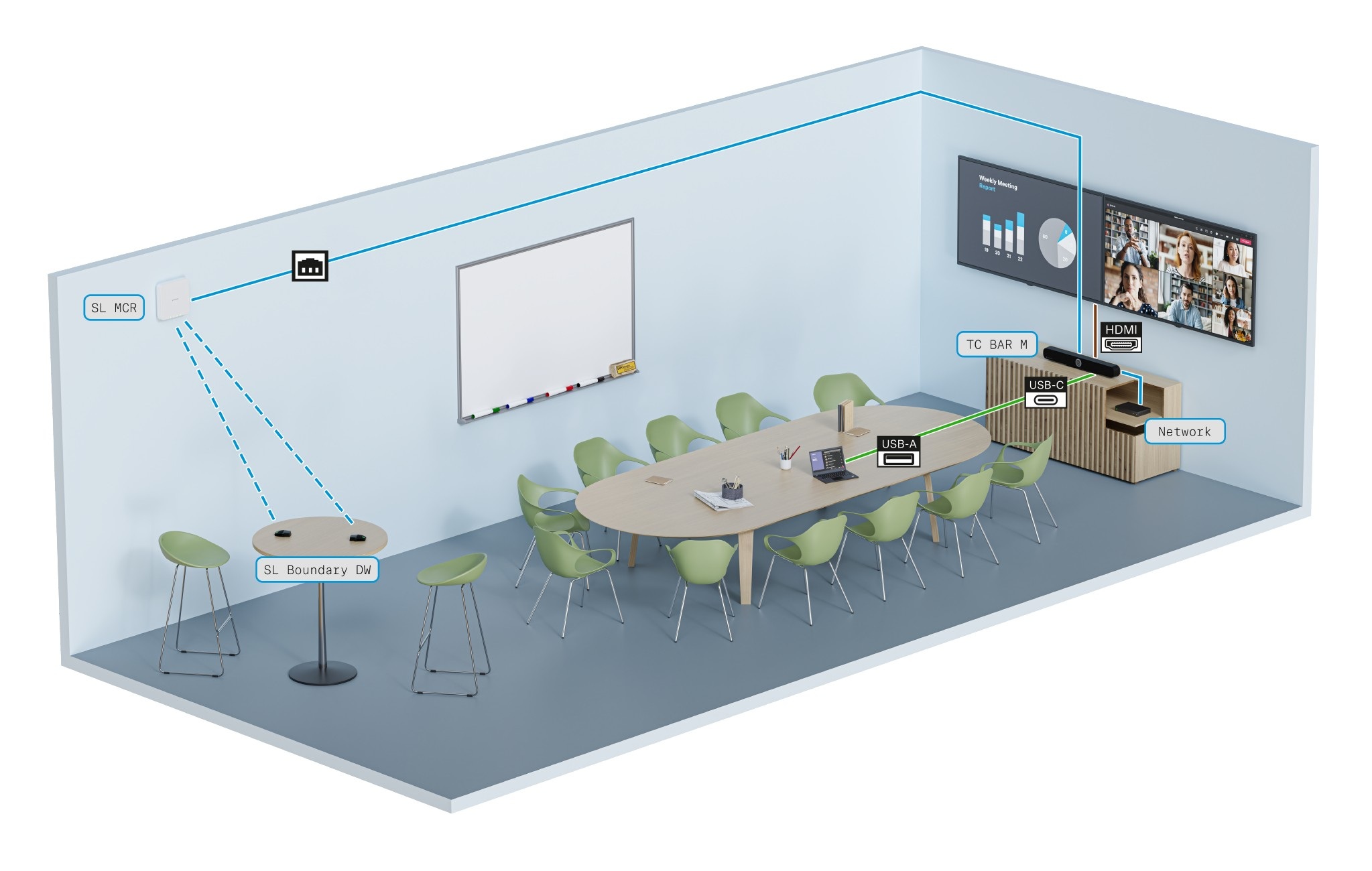

- Flexible Extensions: Using Dante for adding extension mics and/or a 2nd external USB camera
- High Video Quality: 4K Ultra HD camera equipped with advanced AI features
- Full-Range Stereo Speakers: Natural speech and outstanding intelligibility
- Built-In DSP: Automatically optimizes room acoustics
- Multiple Mounting Options: Wall Mount, VESA Mount, Tabletop or Freestanding
- Autoframing and Person Tiling: Features to clearly see everyone in the room
- Control Management: Full remote-control access via Sennheiser Control Cockpit
- Brand Agnostic Integration: Certifications approved for 3rd party media control systems (Barco, Crestron, Extron, Q-Sys) and platforms (Microsoft Teams, Zoom). Certifications pending for 3rd party platforms (Tencent, Dingtalk etc.)
- Advanced Security Features: Encrypted control communication and password protected by default for secure content transmission.
Recommended usage
- TC Bar S is suitable for small rooms (3m x 4.5m), for up to 7 people
- TC Bar M is suitable for Small to medium-sized rooms (4.5m x 6m), for up to 11 people
Generelt
- Kamara type
- Videobar
- Certificeringer
- Microsoft Teams, USB BYOD, Zoom
Billedspecifikation
- Max opløsning (ud)
- 3840x2160
- Framerate
- 30 FPS
- Digital zoom
- 5 x
- Synsfelt (horisontalt)
- 115 ° 120° Diagonal
Funktioner
- Programmerbare presets
- Ja
- Auto framing/tracking
- Ja Auto/Group framing, Person tiling (max 9 persons/tiles)
Lydspecifikation
- Indbygget mikrofon
- Ja 6x MEMS, Beamforming Array
- Ekstern mikrofon
- Ja 2ch Dante in For connecting external microphones. For example Sennheiser SpeechLine series boundary microphones and recievers.
- Audio pickup range
- 5 m Ø
- Indbygget speaker
- Ja 4x 2" with passive radiator, 20W RMS, Max SPL 84dB
Tilslutninger
- Video ud
- HDMI x2 (v 2.0). Videotransfer to display requires DisplayLink driver in user PC.
- USB standard
- 3.1 Gen 1
- Audio indgange
- Bluetooth Vers 5.1
- Audio indgange
- Dante (RJ-45) 2ch Dante in , for connecting external microphones.
- Audio Udgange
- Dante (RJ-45) 2ch Dante out
Energi
- Strømforsyning
- External power supply, in 100-240V 50/60Hz, out 18V DC max. 4 A or PoE (IEEE 802.3at Type 1)
Dimensioner & Vægt
- Bredde
- 750 mm
- Dybde
- 71 mm
- Højde
- 95 mm
- Nettovægt
- 2,5 kg
Yderligere oplysninger
- Inkluderet tilbehør
- Videobar, Mounting Bracket, Drilling Template, Power Supply, Power Cord, Remote Control, 2x AAA Batteries, Bracket & storage, Magnetic Lens Cap, HDMI cable, USB-C Cable 3m, Screws, Quick Guide, Safety Guide
- Garanti
- 3 år
Forpakningsinfo
- Forpaknings størrelse
- 840 x 6 x 174 mm
- Forpaknings vægt
- 5,50 kg
