Overview

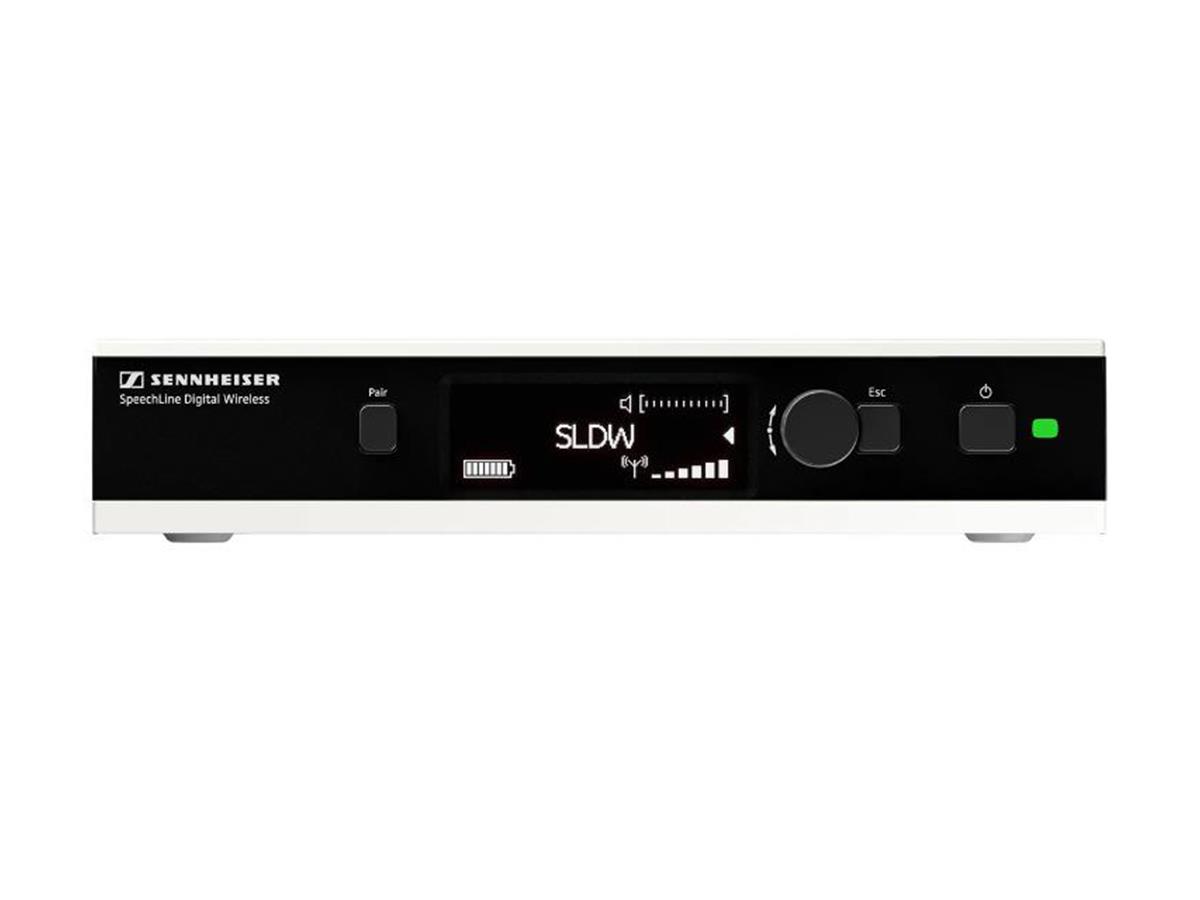

The half 19" stationary SL Rack Receiver DW is the easy-to-integrate core of the SpeechLine Digital Wireless System. It features a clear visible OLED display for easy setup and operation. Thanks to the bi-directional communication all settings of the mobile transmitters can be adjusted from the receiver side. The automatic frequency and interference management allows convenient and reliable operation. Thanks to the easy-to-handle pairing process, the transmitter and receiver are securely linked. Via network integration all settings and statuses are also accessible via AMX/Crestron media control protocol and the dedicated Sennheiser iOS Apps. The antennas can be either back or front-mounted.
Furthermore, extension cables for wall mounting are available.
Features
- Automatic frequency and interference management
- Speech optimized automatics and sound profiles
- Clear and easy focused user interface with OLED display
- Ethernet connectivity (IPv4 and IPv6)
- Media control protocol integration
- Secure 256 bit AES encryption
- Remote controllable
- Quick setup pairing process
What's in the box?
- SL Reveiver DW - Rack Receiver
- Power Supply
- Antennas
Generelt
- Model serie
- SpeechLine
- Mikrofon applikation
- Separate reciever

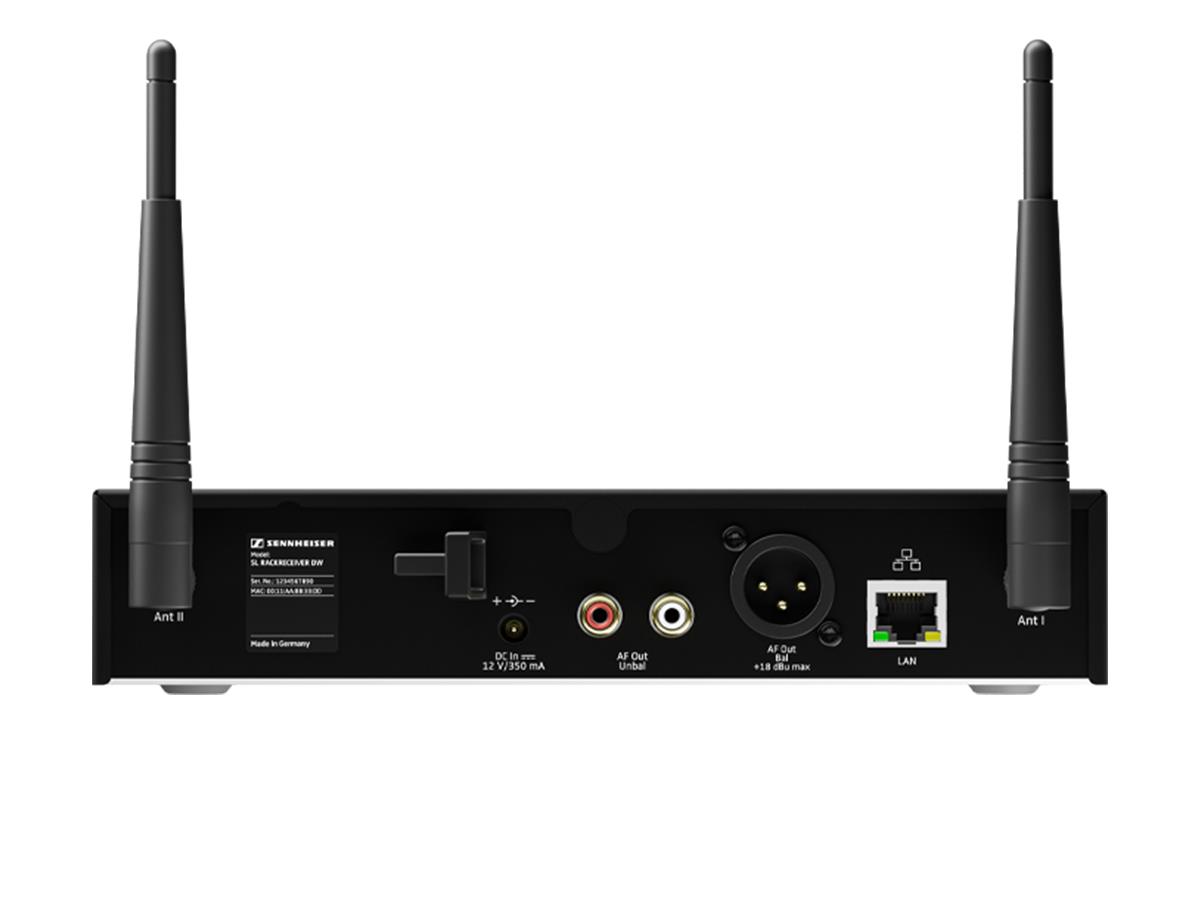

Tilslutninger
- Audio Udgange
- RCA x2, Unbalanced
- Audio Udgange
- XLR x1 3pin Male, balanced
- Ethernet
- Ja Media Control Protocol, TCP/IP IPv4 (DHCP, manual)/IPv6
Trådløse specifikationer
- Trådløs teknologi
- Digital
- Radio frequency Mini
- 1.880 MHz
- Radio frequency Max
- 1.900 MHz
- Latency
- 19 ms
Energy
- Strømforsyning
- 12V DC external power supply, Current consumption 350 mA
Dimensioner og vægt
- Bredde
- 212,1 mm
- Dybde
- 155,8 mm
- Højde
- 43,1 mm
- Nettovægt
- 0,83 kg
Additional information
- Inkluderet tilbehør
- SL Reveiver DW - Rack Receiver, Power supply, Antennas
Forpakningsinfo
- Forpaknings størrelse
- 405 x 274 x 73 mm
- Forpaknings vægt
- 2,43 kg
