It significantly reduces cabling work – a particular advantage where long distances are involved. With characteristic impedance of 110 Ω, the double-shielded signal conductor is suitable for transmission of analogue audio signals as well as digital AES/EBU and DMX signals. However, the logic of the DMX standard is the precise opposite of audio XLR logic; in DMX, the female connector is on the transmitter side and the male connector is on the receiver.

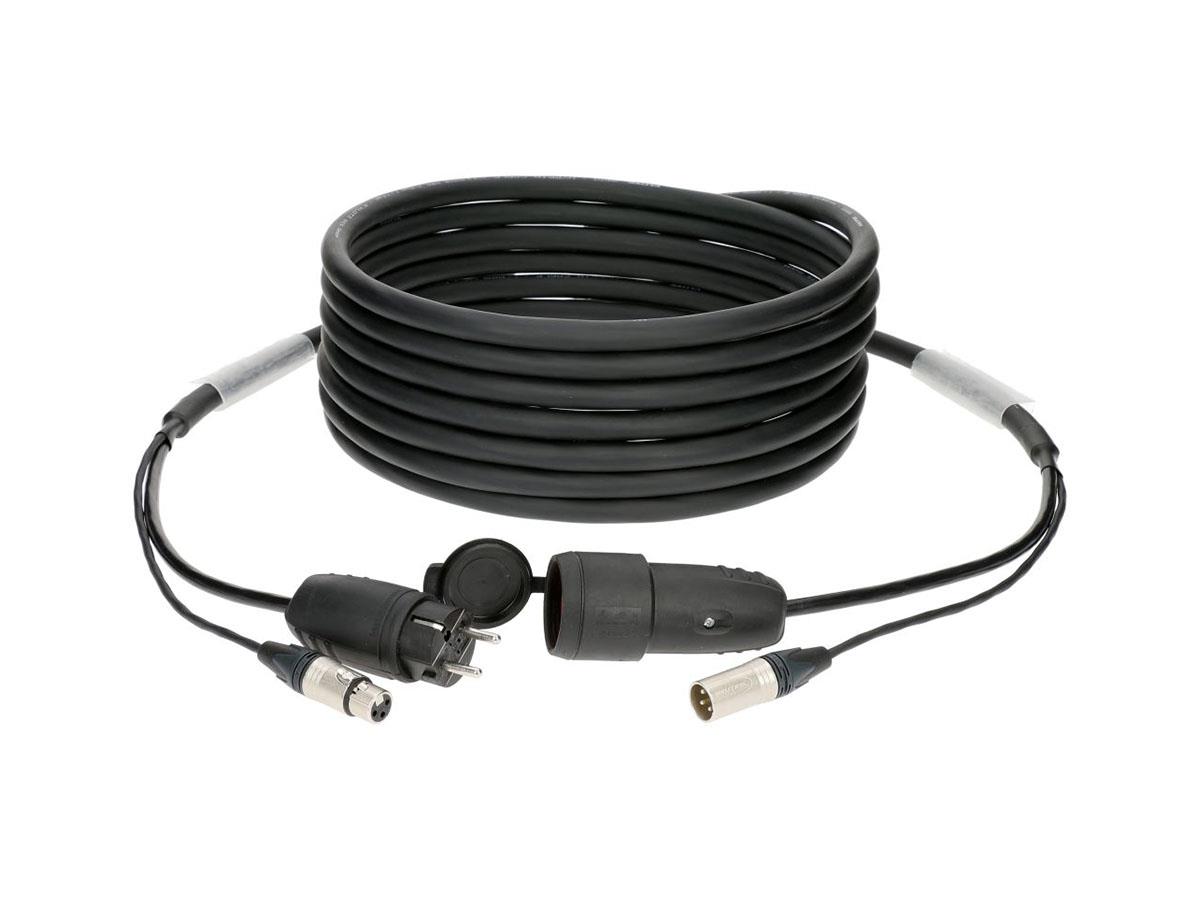

The rugged PVC outer jacket encloses the finely stranded power cable with cross-section of 3 x 2.5 mm² and the double-shielded signal conductor (foil and braided copper shields). They are available with the following connector options: XLR 3p., power CON A, powerCON TRUE1 and earthed plug.

• hybrid cable suitable for analogue and digital signals
• power cable 3 x 2.5 mm²
• Schuko rubber socket with protective cover, black
• Schuko rubber plug
• suitable for all active speaker systems (with built-in power amplifier) from e.g. QSC, Meyer Sound, L-Acoustics, RCF, db technologies, Electro Voice, JBL, Yamaha,...
