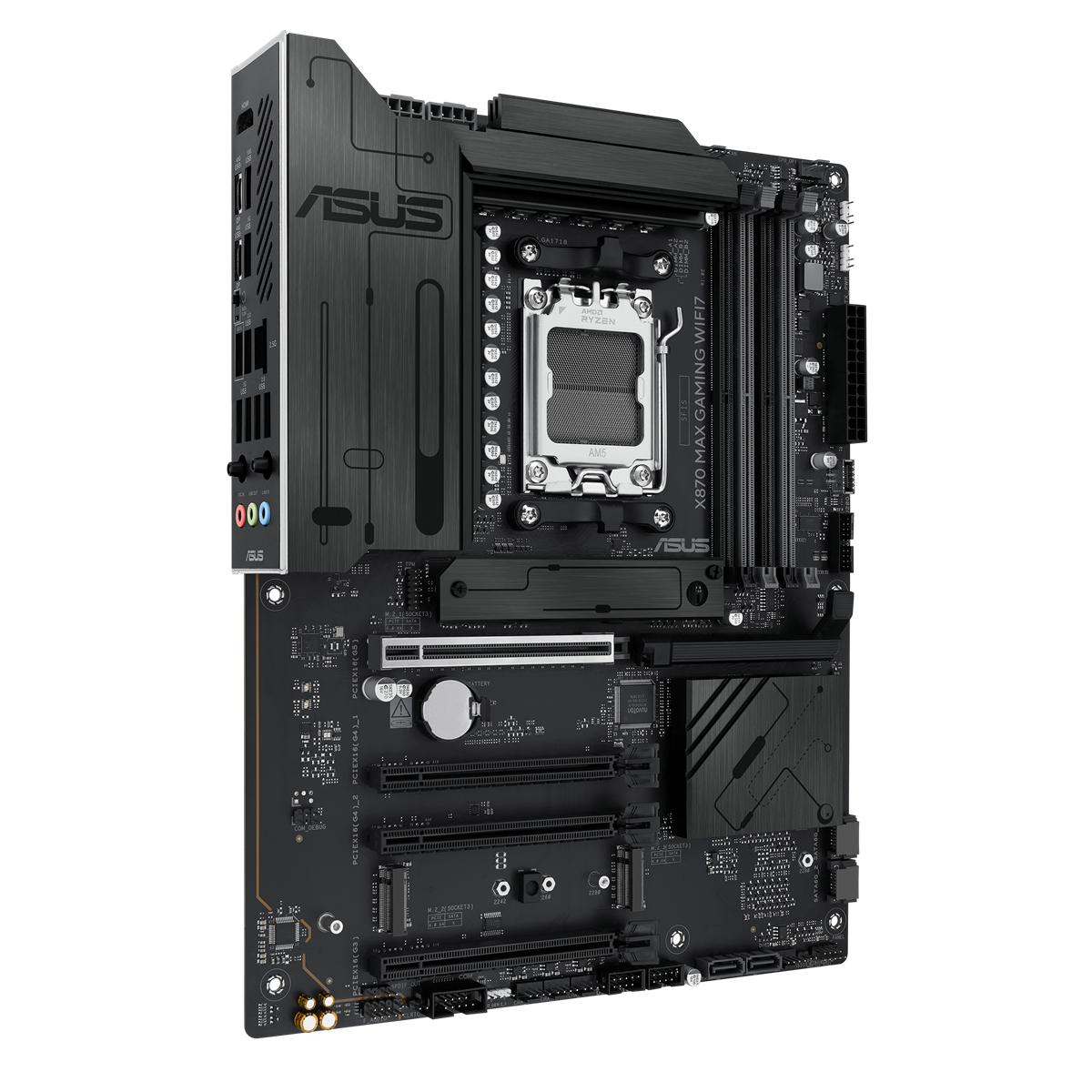

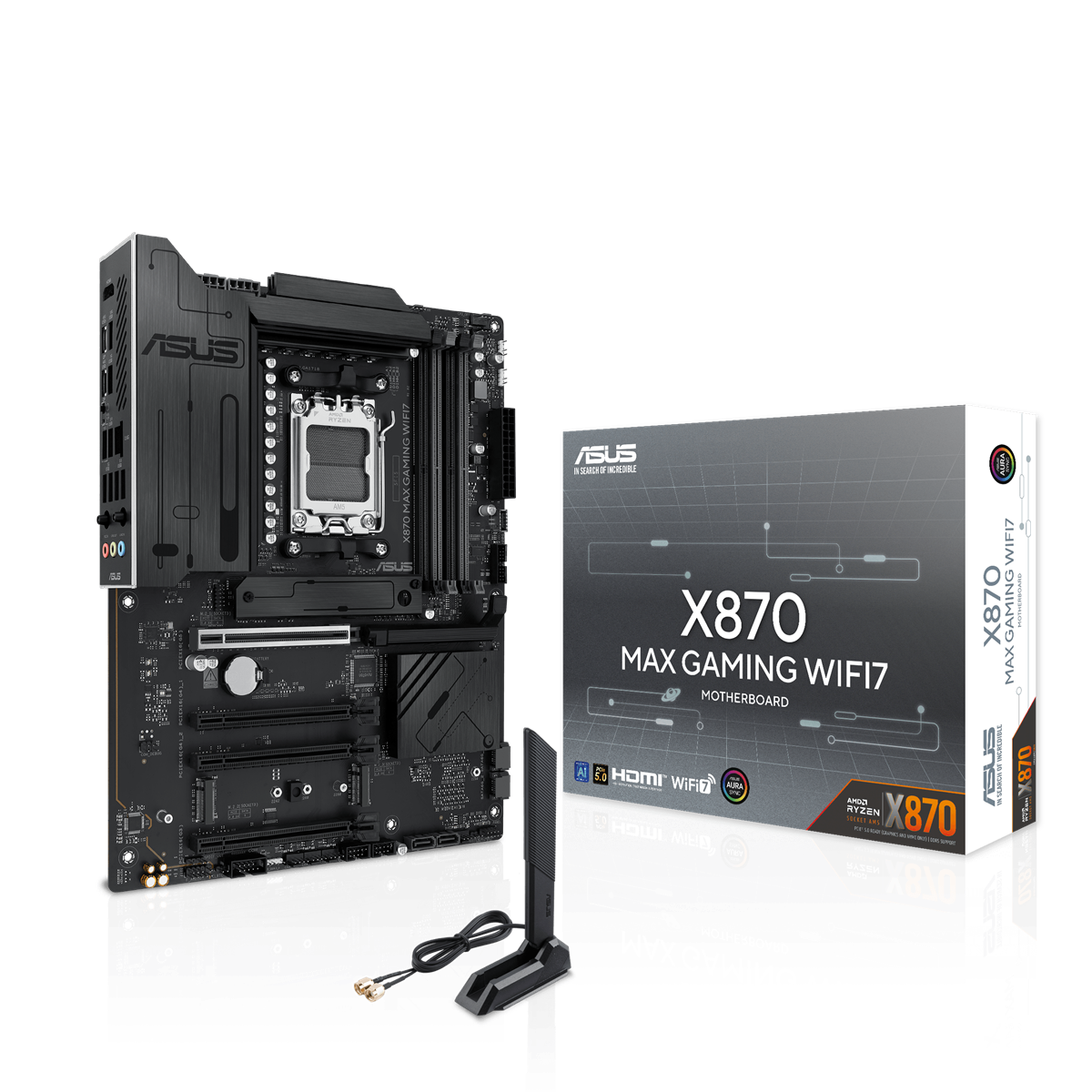

ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Generelt
- CPU-Socket
- AMD AM5
- Chipset
- x870
- Form factor
- ATX
Hukommelse
- Memory Type
- DDR5
- Kanal understøttet
- Dual Channel
- Memory frequency (base)
- 4.800 MHz
- Memory frequency (OC)
- 8.000 MHz
- Memory slots
- 4 pcs.
- Max Memory
- 256 GB
Expansion Slots
- PCIe generation
- PCIe 5.0
- PCIe x16
- 4 pcs.
Lagerenheder
- M.2 slots
- 3 pcs.
- M.2 support
- 2242/2260/2280
- M.2 generation
- PCIe 5.0 x4/PCIe 4.0 x4
- SATA ports
- 4 pcs.
Kommunikation
- Wi-Fi
- Ja
- WiFi Standard
- Wi-Fi 7
- Bluetooth
- Ja
- Bluetooth standard
- 5.4
- LAN controller
- Realtek
- LAN hastighed
- 2.5Gb Ethernet
Internal I/O Connectors
- RGB
- Ja
- Fan Connector (4-pin)
- 7 pcs.
Rear Panel Ports
- USB type-A
- Ja
- USB type-C
- Ja
- HDMI
- Ja
- DisplayPort
- Nej
- VGA
- Nej
- AUX ud
- Ja
- Ethernet
- Ja
- PS/2
- Nej
- Serial/Parallel
- Nej
Dimensioner og vægt
- Bredde
- 305 mm
- Længde
- 244 mm
Forpakningsinfo
- Forpaknings størrelse
- 283 x 357 x 76 mm
- Forpaknings vægt
- 1,94 kg
Forpakningsinfo (4 pcs)
- Forpaknings størrelse
- 378 x 303 x 302 mm
- Forpaknings vægt
- 8,49 kg
