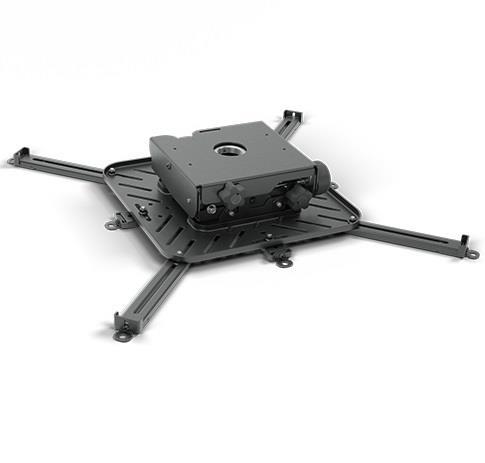

The VCTUB XL Universal Tool-free Projector mount was designed to install quickly while maintaining a sleek aesthetic. Lighter and slimmer than its predecessor, the VCM, the VCT works well with laser projectors between 50-150 lbs (22.7 – 68 kg). Tool-free MicroZone adjustment ensures accurate and reliable image registration.

Includes the HCUB Universal Interface.

Key Features

  • Low Profile
  • The new VCT is 30% slimmer than the VCM mount
  • Lightweight
  • The new VCT is 25% lighter than the VCM mount
  • Sleek Aesthetic
  • Matching knobs & hardware
  • Available in black and white finish options
  • Tool-free MicroZone+ Pitch Adjustment
  • The fine tune pitch adjustment has a 100:1 gear ratio for precise image alignment
  • Can be hand adjusted using the tool-free knob or driven with a 1/2” (13mm) socket
  • PrecisionSet™ technology to lock in pitch adjustments

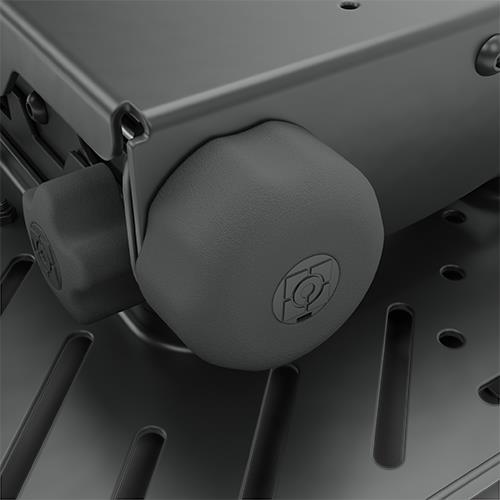

  • Tool-free MicroZone™ Roll & Yaw Adjustments
  • Gear driven tool-free knob adjustments
  • Lockout nuts enable additional image lock security
  • New Universal Interface
  • Universal plate is sized to accommodate most patterns within footprint
  • Short attachment legs reduce clutter for smaller projector installation patterns
  • Long attachment legs extend reach for larger projector installation patterns Custom interfaces also available


Generelt

Farve
Sort
Kolonne installation
NPT Threaded

Funktioner

Tilt
Ja +/-20°
Drejbar
Ja +/-360°
Roterbar/Pivot
Ja +/-5°
Låsbar
Nej Lockout nuts enable additional image lock security

Measurements and weight

Max vægts kapacitet
68 kg

Additional information

Garanti
10 år

Forpakningsinfo

Forpaknings størrelse
730 x 480 x 178 mm
Forpaknings vægt
14,10 kg

Tilbehør

Artikel nummer 2200094
