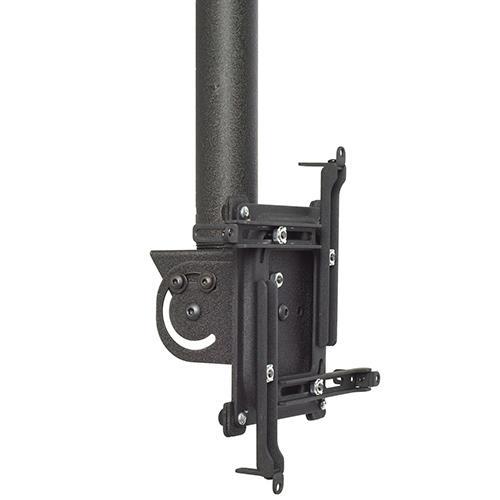

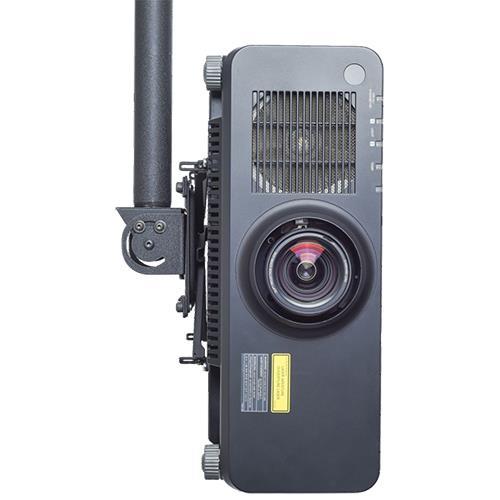

Chief’s VPAU enables projectors to be positioned in multiple orientations including popular vertical and portrait digital signage applications. A great solution for projectors that are equipped with multi-direction capabilities.
NOTE! Requires a column and ceiling adapter, ordered separately. See accessory tab for more.
Key Features
- Independent roll, pitch and yaw for quick and precise projector registration
- Quick connect / disconnect for easy installation and servicing
- Maintains registration when disconnected and doesn't affect preset adjustments
- Solid steel construction
- Universal interface compatible with 6 projector attachment points
- Adjustable mounting legs and feet
NOTE! Not compatible with other Chief projector interface brackets (SLB/SLM/SSB/SSM)
Generelt
- Farve
- Sort
- Kolonne installation
- NPT Threaded
Funktioner
- Tilt
- Ja +/-360°
- Drejbar
- Ja +/-360°
- Roterbar/Pivot
- Ja +/-95°
- Låsbar
- Nej
Measurements and weight
- Max vægts kapacitet
- 34 kg
- Bredde
- 152,4 mm
- Højde
- 139,7 mm
- Dybde
- 177,8 mm
Additional information
- Garanti
- 10 år
Forpakningsinfo
- Forpaknings størrelse
- 271 x 266 x 147 mm
- Forpaknings vægt
- 3,17 kg
