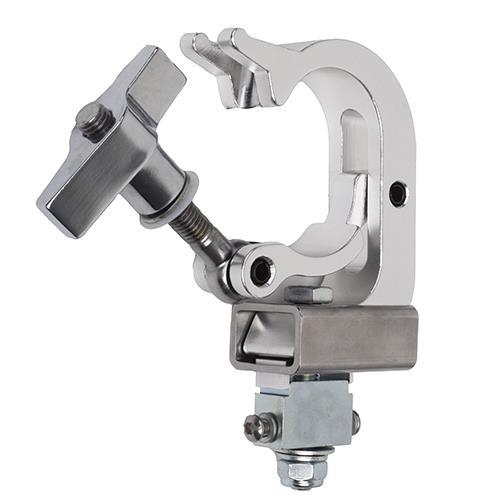

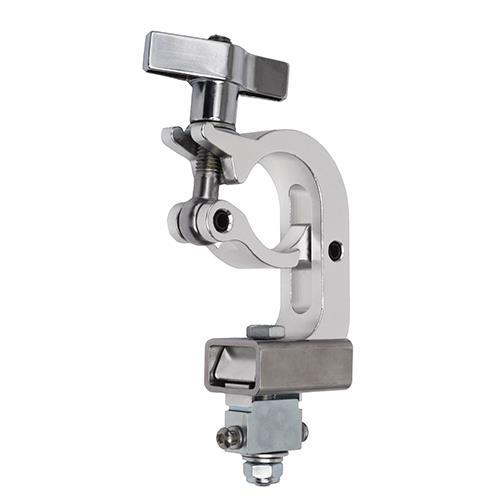

Adapts CPA pin connect columns to a 2” (51mm) tube truss for temporary projection and flat panel needs. Designed especially for rental and staging installation benefits.
Extension columns sold separately.

Key Features:
• Compatible with all Chief CPA columns, accessories, projector & flat panel mounts
• Trigger style clamp allows for one person install
• Safe working load of 250 lbs (113.4 kg)
• External Cable management accessories available (CMA274)



Generelt

Monteringsløsning
Clamp/Truss
Kolonne installation
Pin Connection
Farve
Sølv

Dimensioner og vægt

Max vægts kapacitet
113,4 kg
Bredde
104 mm
Højde
208 mm
Dybde
38 mm

Yderligere oplysninger

Garanti
10 år

Forpakningsinfo

Forpaknings størrelse
330 x 152 x 152 mm
Forpaknings vægt
1,40 kg

Tilbehør
