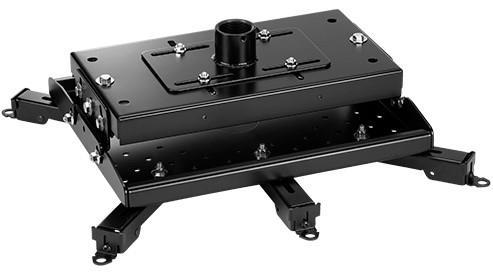

This mount provides the strong support you need for mounting heavy LCD/CRT projectors. Micro adjustments allow you to quickly achieve registration. The VCMU mount includes the universal HBU bracket that is compatible with most heavy duty projectors.
Key Features
- Independent roll, pitch and yaw adjustments for quick and precise projector registration
- Multiple installation options: flush mount to ceiling, use 0.5" threaded rods, use a 1.5" NPT extension column
- Quick connect/disconnect for convenient lamp and filter access on most projectors
- Cable management through top of the mount without additional accessories
- Easy 3-Step Installation
-
- Assemble legs to projector
-
- Fasten legs to universal bracket
-
- Hook bracket onto VCM mount
- Heavy Duty Steel Construction
- Weight Capacity: 113,4kg
- Universal bracket also sold separately (HBU)
Generelt
- Farve
- Sort
- Kolonne installation
- NPT Threaded
Funktioner
- Tilt
- Ja +/-20°
- Drejbar
- Ja +/-360°
- Roterbar/Pivot
- Ja +/-5°
- Låsbar
- Nej
Measurements and weight
- Max vægts kapacitet
- 113,4 kg
Additional information
- Garanti
- 10 år
Forpakningsinfo
- Forpaknings størrelse
- 425 x 292 x 635 mm
- Forpaknings vægt
- 20,43 kg
- Stregkode
- 841872154350
