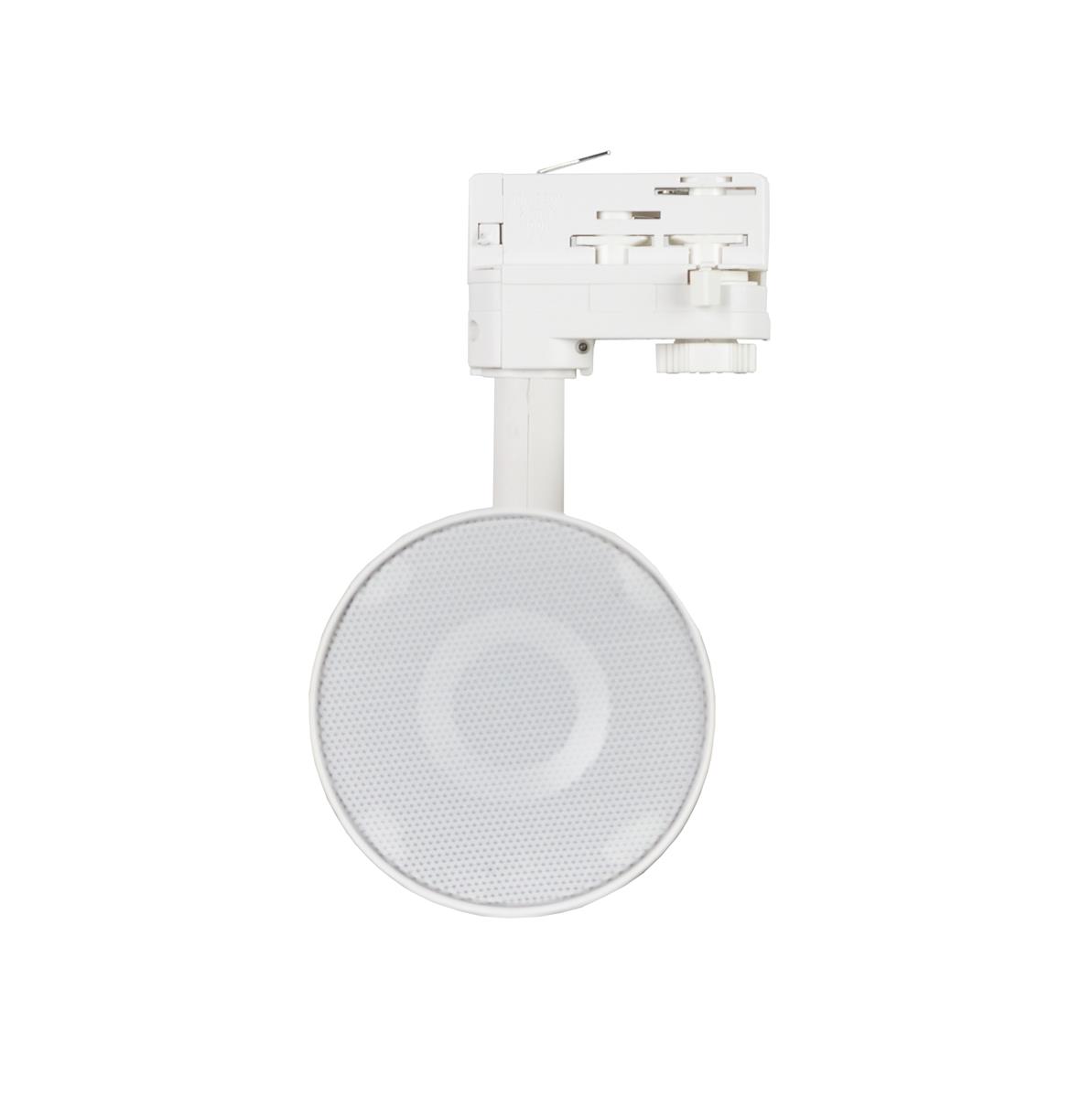

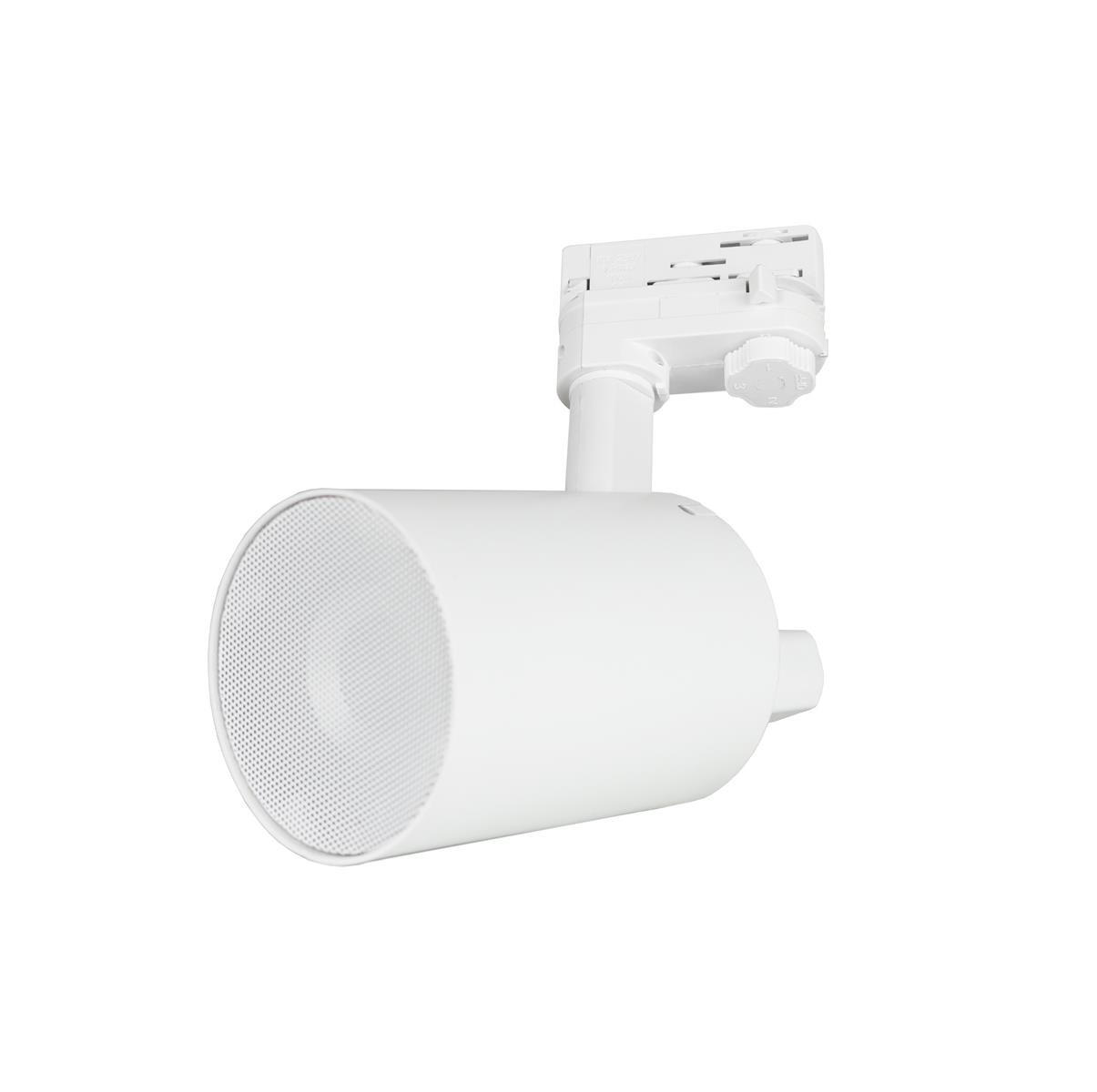

WiSpeak TUBE is a self-powered 3" lamp style loudspeaker with wireless audio reception and control capabilities under the control of the Master unit, featuring an installation system which is compatible with ceiling light rails.
- Lamp style self-powered WiSpeak receiver, including 3” driver
- Lighting rail mount included
- Surface mount accessory available, optional (ref. TUBE SMA)
- Universal, internal power supply, taking mains AC from the lighting rail bracket (100-240VAC 50-60Hz)
- 1 x WiSpeak wireless audio signal received, from the transmitter it is paired to
- 1 x AUX OUT analogue signal available (a copy of the received WiSpeak signal). It can be used for linking the unit to another WiSpeak transmitter, to extend the network, or to external audio devices, such as amplifiers, mixers or subwoofer units
- Back panel UNPAIR control and LED indicators
Wireless specification:
- Frequency band: U-NII 5.1 – 5.8GHz (supported worldwide), Up to 24 non-overlapping RF channels, DFS support
- Coverage range: Up to 12m from a TX to any paired RX, direct line of sight
- Audio channels: WiSpeak CH1 / CH2
- Audio transmission: 24bit uncompressed, 48kHz SR
- Latency: From TX IN to RX AUX OUT <6ms, From TX IN to RX Speaker <6ms
Monetoring and control:
- Volume control: via WiSpeak grip app.
- Other controls: SOLO: via WiSpeak grip app
- ID TEST SIGNAL: via WiSpeak grip app
- PAIR / UNPAIR: via WiSpeak grip app and Panel button
- LED Indicators: WiS and STR LEDs
- Programing and control: via WiSpeak grip app.
Applications
Retail Education Corporate Sports & Wellness Hospitality
Generelt
- Applikation
- Rail mount Rail mount included
- Applikation
- Wall With optional surface mount accessory (TUBE SMA)
- Aktiv/Passiv
- Active
- Farve
- Hvit
Højttalerenheder
- Woofer
- 3 "
Lydspecifikation
- Impedance
- 4 Ohm
- Frequency range Min
- 105 Hz (-10dB)
- Frequency range Max
- 20.000 Hz (-10dB)
- Følsomhed (1W/1m)
- 83 dB
- Strømhåndtering
- 18 W RMS / 72 W Peak
- Forstærker Power
- 18 W RMS / 72 W Peak, built-in amplifier
- 70/100 mode
- Nej
- Max SPL
- 96 dB Continuous / 102 dB peak
- Coverage angle (Hor)
- 150 ° Conical
- Coverage angle (Ver)
- 150 ° Conical
Tilslutninger
- Audio indgange
- RF Wireless CH1 / CH2: Digital, Mono, RF Wireless Audio
- Audio Udgange
- Euroblock line Aux out: Analog, Mono, Balanced
Energy
- Strømforsyning
- From lighting rail bracket, 100-240VAC @ 50-60Hz Universal, internal power supply. Power consumption: 15W (rated)
Dimensioner og vægt
- Bredde
- 96 mm
- Dybde
- 130 mm
- Højde
- 96 mm
- Nettovægt
- 0,8 kg
Yderligere oplysninger
- Udendørs brug
- Nej
- Inkluderet tilbehør
- Lighting rail mount
- Garanti
- 5 år
- Antal til levering
- Single unit
Forpakningsinfo
- Forpaknings størrelse
- 245 x 195 x 185 mm
- Forpaknings vægt
- 1,12 kg
