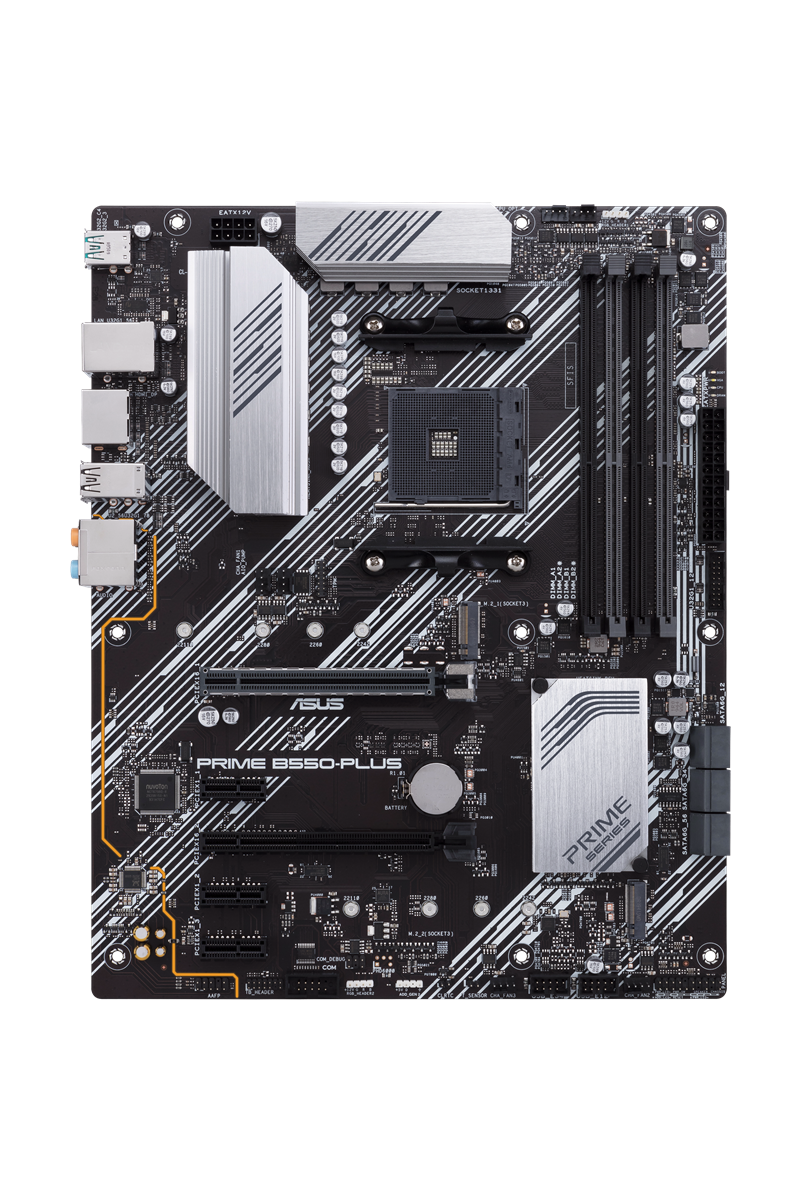

ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.
Cool to the Core
Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
VRM Heatsink and Thermal Pads
Two massive VRM heatsinks with underneath thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Build on a Solid Foundation
Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
PCIe 4.0 M.2 (up to 64 Gbps)
Achieve Speed With Onboard M.2
PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to 64Gbps PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.
Little Things Make a Big Difference
Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
Generelt
- CPU-Socket
- AMD AM4
- Chipset
- AMD B550
- Form factor
- ATX
Hukommelse
- Memory Type
- DDR4-SDRAM
- Memory frequency (base)
- 2.133 MHz
- Memory frequency (OC)
- 4.600 MHz
- Memory slots
- 4 pcs.
- Max Memory
- 128 GB
Expansion Slots
- PCIe generation
- 4.0
- PCIe x16
- 2 pcs.
- PCIe x1
- 3 pcs.
Lagerenheder
- M.2 slots
- 2 pcs.
- M.2 support
- PCIE 4.0 x4 and SATA modes
- M.2 interface
- Socket 3 with M key
- SATA ports
- 6 pcs.
Kommunikation
- WiFi
- Nej
- LAN controller
- Realtek RTL8111H
- LAN hastighed
- 1 Gb/s
Internal I/O Connectors
- TPM
- Ja
- Thunderbolt
- Ja
- RGB
- Ja 2 x Aura RGB Strip Headers, 1 x Addressable Gen 2 header
- Fan Connector (4-pin)
- 5 pcs.
Rear Panel Ports
- USB type-A
- Ja 1 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 2 x USB 2.0
- USB type-C
- Ja 1 x USB 3.2 Gen 2
- HDMI
- Ja 1x
- DisplayPort
- Ja 1x
- AUX ud
- Ja 5 x Audio jack(s), 1 x Optical S/PDIF out
- Ethernet
- Ja 1 x LAN (RJ45) port(s)
Dimensioner og vægt
- Bredde
- 305 mm
- Længde
- 244 mm
Forpakningsinfo
- Forpaknings størrelse
- 328 x 263 x 67 mm
- Forpaknings vægt
- 1,35 kg
Forpakningsinfo (10 pcs)
- Forpaknings størrelse
- 450 x 450 x 500 mm
- Forpaknings vægt
- 12,00 kg
