Datasheet

HOB craft, damp proof and knock proof.

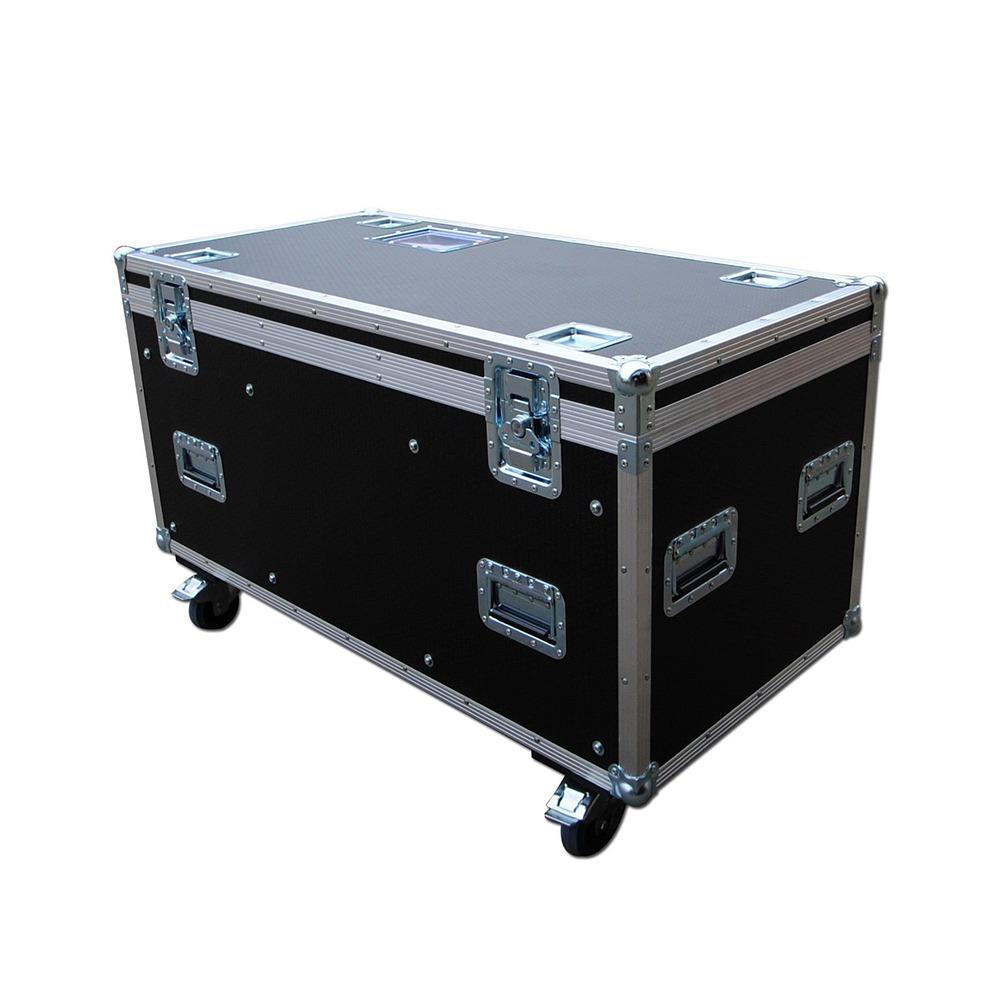

Flight case package with trolley bracket included.

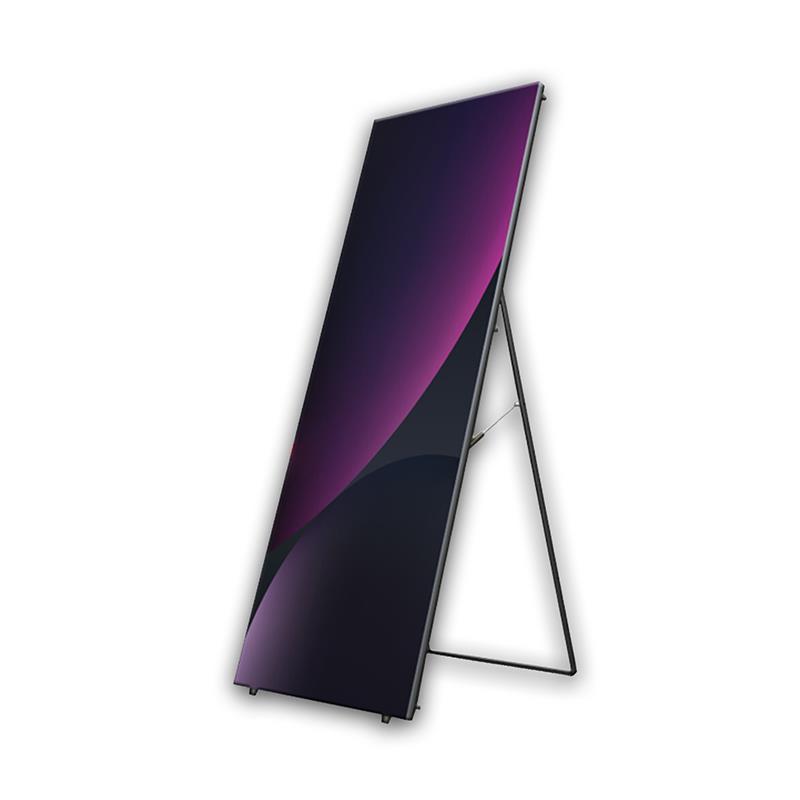

LED poster display adopts two-color alloy technique. This thin display features magnetic butterfly bezel design and supports seamless splicing of multiple screens. It can be used singly, or horizontally spliced into a display unit with 1080p resolution. It features in dynamic display with high brightness and high contrast. You can get a good display effect from any angle of view.
It supports conventional wall-mounting, decorative wall-mounting, pendant mounting, tilt bracket mounting, mobile base mounting, etc.

 Even the thickest part of this thin display is only 28.1 mm or so. With two-color alloy splicing design and magnetic butterfly bezel design, it supports seamless splicing of multiple screens.
 Empowered by self-developed lossless image processing technology and ultra-low gray scale image control technology, it presents dynamic colors and delicate images with soft color.
 You can control and manage your content remotely via local storage, USB flash drive, mobile client, PC client, Hik-cloud, etc.
 Its modular system box supports quick maintenance or replacement of product system modules.
 When used in a single unit, it supports dynamic guidance and mobile phone mirroring. When spliced with two units, it can be used to display character ads. When spliced as a 2K splicing display, it can be directly connected to display a computer screen.
 It supports tilt bracket mounting, mobile two-color alloy base mounting, wall mounting, pendant mounting, and creative bracket mounting.
 HOB light board protection functions make it moisture-proof in humid regions and prevent it from falling over in crowded places.



Skærm

Skærmopløsning
384x1080
Pixel pitch
1,5 mm
Diode Type
SMD Triad LED
Brightness (Max)
600 Nits (White Balance Brightness)
Viewing angle
160 ° H/V

Energi

Strømforsyning
110 to 220 VAC ± 15%
Consumption Max/m2
150 W
Consumption Max tot.
450 W

Dimensioner og vægt

Bredde
613 mm
Højde
1.695,5 mm
Dybde
68,1 mm
Nettovægt
29 kg

Yderligere oplysninger

Service access
Front/Rear
Inkluderet tilbehør
LED Poster Display, Tilt Bracket, Power cord × 1, HDMI × 1, Wi-Fi antenna × 2

Tilbehør
