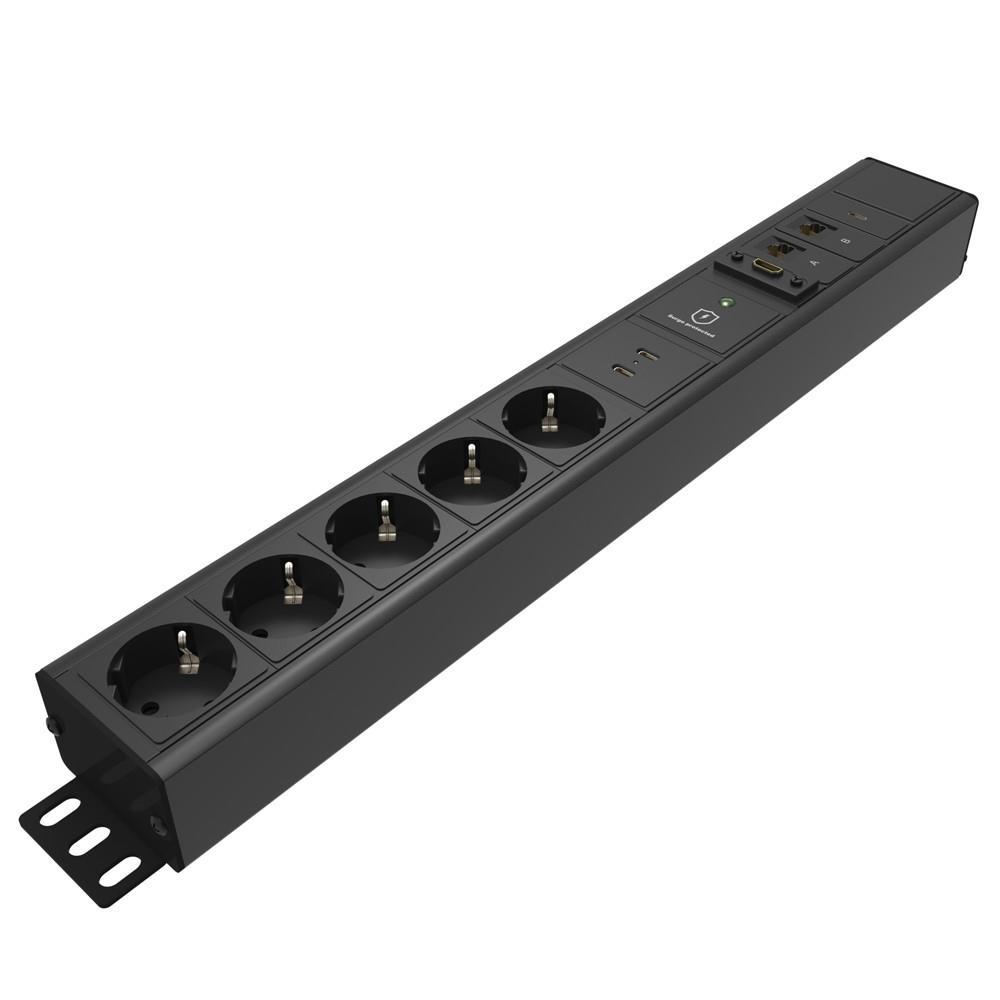

Outlet strip with 5 x power sockets (type F), 2x USB-C charger with max 30W , 2x data ports (RJ45), 1x USB-C data port and 1x HDMI. The outlet strip also has a Surge protector to protect connected devices from voltage spikes. Ideal for daisy chain. The outlet is easily mounted on the bottom of e.g. a cable tray.
The new Axessline Outlet Strip replaces Axessline Outlet Strip with USB-A (9402050309).
Specifications
• 5 x Power (Type F)
• 2 x USB-C Charger max 30W
• 2 x Data port (RJ45)
• 1 x USB-C port
• 1 x HDMI (HDMI 2.1)
• Surge protector
• 250V, 16A, Max 3500 W
Cables
• 1 x 0.5 m GST-cable (3x1.5 mm², GST-18i3, Male)
• 2 x 0.6 m Data port (RJ45)
• 1 x 0.6 m USB (Type C, USB 3.1, Male)
• 1 x 0.6 m HDMI (HDMI 2.1)
Complement with Axessline Connection Cord CEE 7/7 to 3PC.
HDMI
If the combined HDMI cable lengths exceed 7 meter, then signal amplifiers must be used. There are many factors that affect the signal - the cables quality, contacts, amount of data (resolution) and source strength.
Generelt
- Applikation
- Inlay module
- Modular
- Nej
Tilslutninger
- HDMI
- Ja x1 HDMI 2.1
- DisplayPort
- Nej
- USB type-C
- Ja 3x total. 1x USB-C port, 2x Charger ports, max 30W
- USB type-A
- Nej
- VGA
- Nej
- DVI
- Nej
- Audio 3.5mm
- Nej
- Balanceret Audio
- Nej
- Ethernet
- Nej 2x (RJ45)
- Kabel pass-through
- Nej
- 230V stik
- 5 pcs. Schuko. 250V, 16A, Max 3500 W
Dimensioner og vægt
- Længde
- 508 mm
- Bredde
- 62 mm
- Dybde
- 53 mm
- Kabellængde
- 0,5 m GST-cable (3x1.5 mm², GST-18i3, Male)
Yderligere oplysninger
- Farve
- Sort
- Garanti
- 1 år
Forpakningsinfo
- Forpaknings størrelse
- 528 x 106 x 78 mm
- Forpaknings vægt
- 1,13 kg
