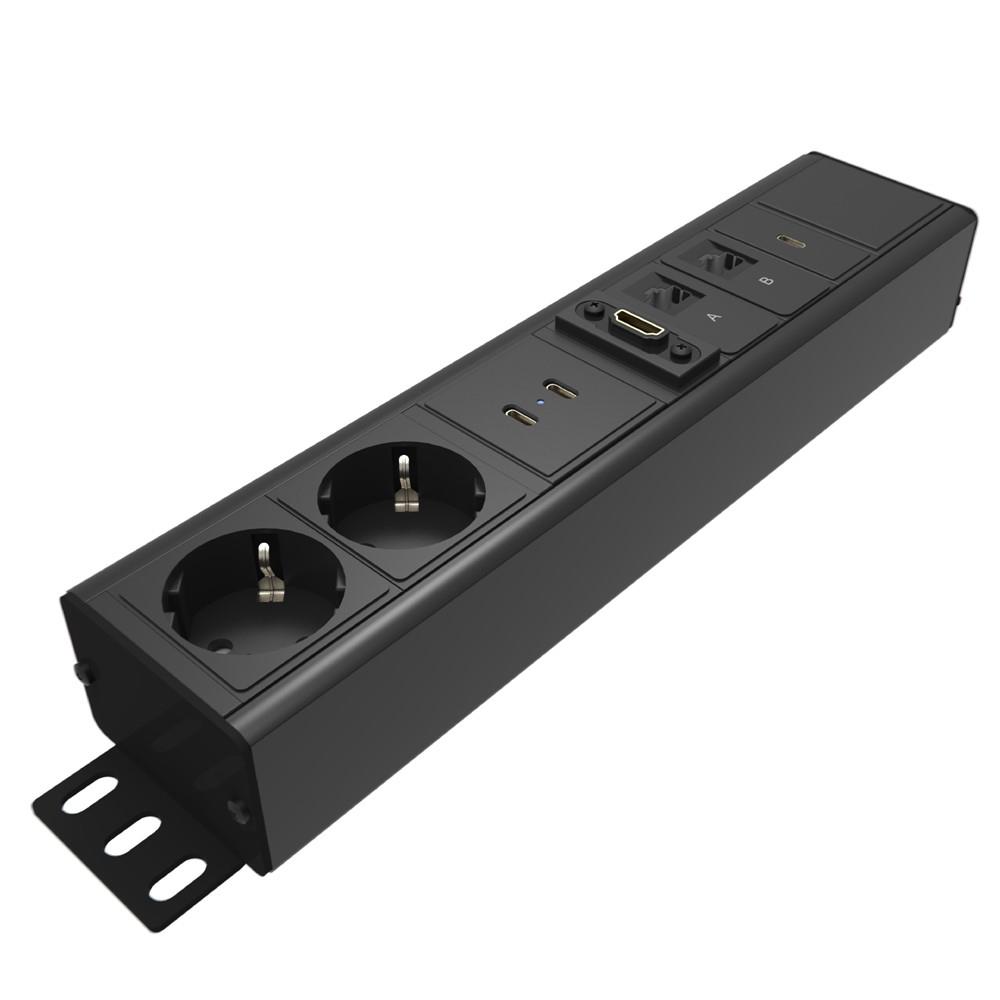

Outlet strip with 2 x power sockets (type F), 2x USB-C charger with max 30W , 2x data ports (RJ45), 1x USB-C data port and 1x HDMI. Ideal for daisy chain. The outlet is easily mounted on the bottom of e.g. a cable tray.
The new Axessline Outlet Strip replaces Axessline Outlet Strip with USB-A (9402050209).
Specifications
•   2 x Power (Type F)
•   2 x USB-C Charger max 30W
•   2 x Data port (RJ45)
•   1 x USB-C port
•   1 x HDMI (HDMI 2.1)
•   250V, 16A, Max 3500 W
Cables
•   1 x 0.5 m GST-cable (3x1.5 mm², GST-18i3, Male)
•   2 x 0.6 m Data port (RJ45)
•   1 x 0.6 m USB (Type C, USB 3.1, Male)
•   1 x 0.6 m HDMI (HDMI 2.1)
Complement with Axessline Connection Cord CEE 7/7 to 3PC.
HDMI
If the combined HDMI cable lengths exceed 7 meter, then signal amplifiers must be used. There are many factors that affect the signal - the cables quality, contacts, amount of data (resolution) and source strength.
Generelt
- Applikation
 - Inlay module

Tilslutninger
- HDMI
 - Ja
 - USB type-C
 - Ja 2x USB-C Charger 1x USB-C port
 - Ethernet
 - Ja 2x RJ-45
 - 230V stik
 - 2 pcs.

Dimensioner og vægt
- Længde
 - 330 mm
 - Bredde
 - 62 mm

Yderligere oplysninger
- Farve
 - Sort

Forpakningsinfo
- Forpaknings størrelse
 - 346 x 139 x 114 mm
 - Forpaknings vægt
 - 896 g
