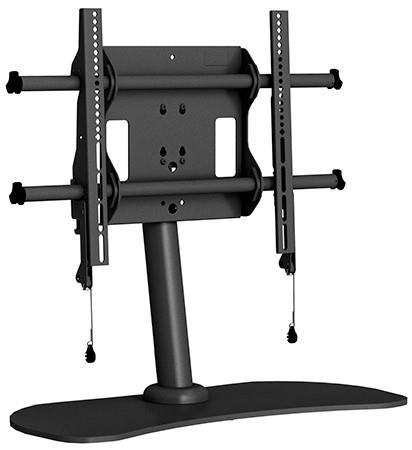

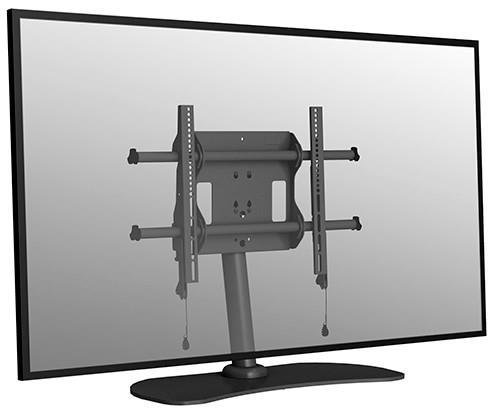

This Fusion table stand safely supports displays on tables with swivel and cable management features.

Key Features

  • Smooth swivel
  • Prevent screen from colliding with walls or furniture by setting rotation limits at +/- 15° or 30°
  • Easily route and conceal cables through a wide, in-column channel for a clean finish
  • Built-in universal interface fits most screens 46" - 70", and provides everything needed for installation in just one SKU
  • Mounting pattern range: VESA® 100 x 100 mm - 642 x 400 mm
  • Ideal for hospitality applications
  • Set screw locking to prevent lateral slide off-center


Generelt

Antal skærme
1 pcs.
Applikation
Table
Farve
Sort
Display orientation
Landscape

Funktioner

Højdejustebar
Ja 76 mm
sidejustering
Nej
Dybde justering
Nej
Tilt
Nej
Drejbar
Nej
Roterbar/Pivot
Ja +/-15° or 30°
Låsbar
Ja With padlock (option)

Dimensioner og vægt

VESA mount interface (mm)
100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400
Max vægt (pr skærm)
56,7 kg

Yderligere oplysninger

Garanti
10 år

Forpakningsinfo

Forpaknings størrelse
850 x 425 x 143 mm
Forpaknings vægt
25,00 kg
