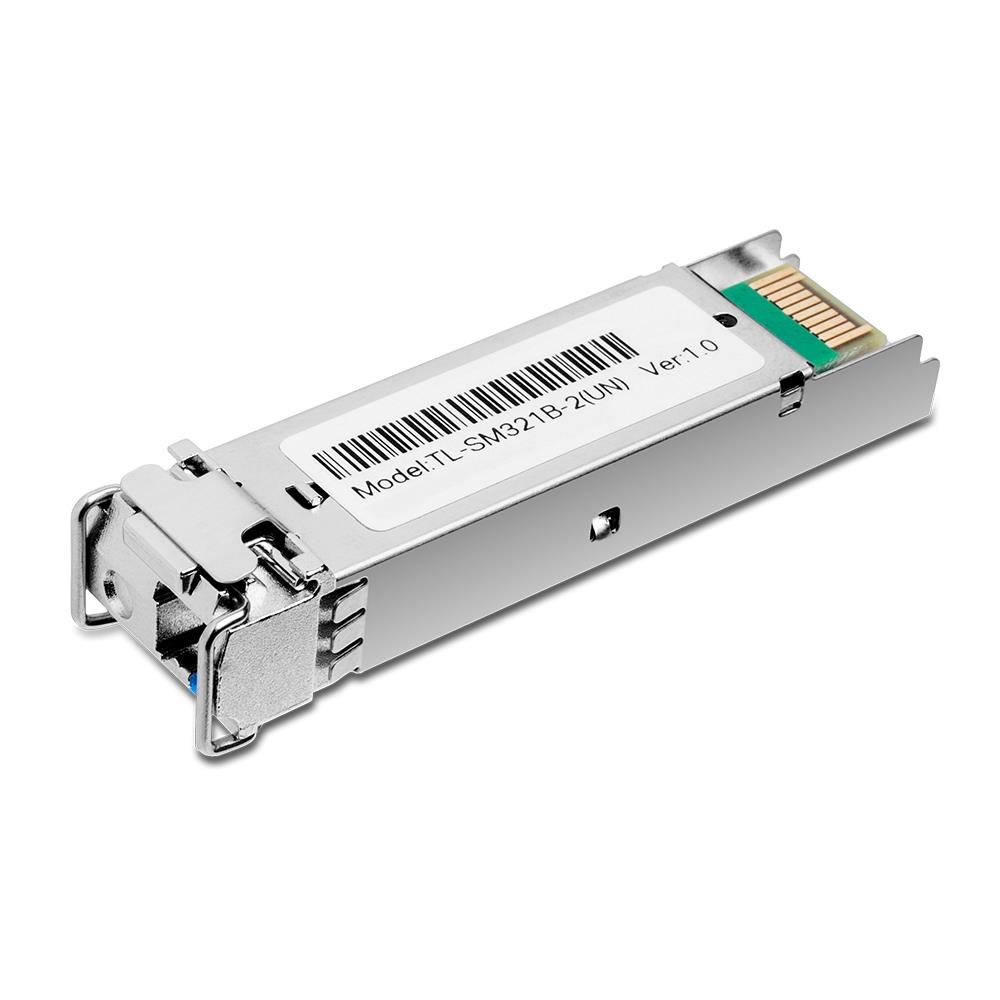

1000Base-BX WDM Bi-Directional SFP Module SM321B-2 (TL-SM321B-2)

  • Designed for on-site gigabit fiber communication
  • Up to 2 km transmission distance with 9/125 μm SMF (Single-Mode Fiber)
  • Bidirectional WDM communication on a single fiber
  • Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
  • Supports Digital Diagnostic Monitoring (DDM)
  • Hot-swappable module design
  • Work with TL-SM321A-2 as a pair

What This Product Does
TP-LINK´s TL-SM321B-2 and TL-SM321A-2 is designed to work in a pair to create an on-site gigabit fiber communication up to 2km (2,000 meters). With one single-mode fiber, the pair of modules can create a full-duplex gigabit path between your switches, storage devices, and server.

The TP-LINK´s TL-SM321B-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321B-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 μm SMF (Single-Mode Fiber).

Also, TL-SM321B-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.

TP-Link's TL-SM321B-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.



Generelt

Farve
Sølv

Yderligere oplysninger

Inkluderet tilbehør
Installation Guide
Garanti
2 år

Forpakningsinfo

Forpaknings størrelse
122 x 81 x 38 mm
Forpaknings vægt
60 g

Relaterede produkter

Artikel nummer 5406064
